blog entry #3 part 2

steps taken to create my phone stand for my ca1 part 7

Step 1: Create Sketch

Step 2: Create Center Rectangle

Step 3: Create Line (14mm long) and adjust the breadth (10mm)

Step 4: Create a 12mm long line

Step 5: Create a line (70mm) with a degree of 70°

Step 6: Create two lines

Step 7: Create a box and align it

Step 8: Repeat for the bottom part

Step 9: Extrude (3mm)

Step 10: Fillet the corners

Step 11: Copy the body

Step 12: Create a rectangle

Step 13: Create 2 boxes on the rectangle and extrude (3mm)

Step 14: Fillet

Step 15: Copy the body

final outcome after i added some design onto it

steps taken to create my print-in-place artefact for my assignment 1

Step 1: Insert Canvas

Step 2: Create Sketch

Step 3: Outline left side of the leaf using Fit Point Spline

Step 4: Create a centreline

Step 5: Use Mirror to outline the right side of the leaf

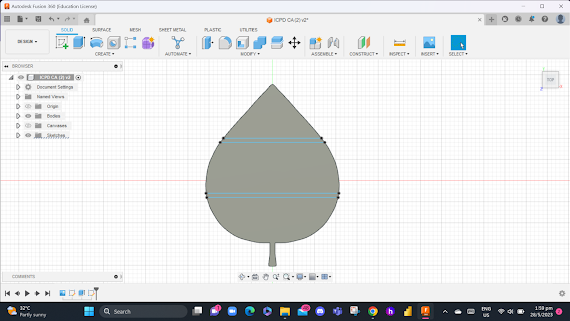

Step 6: Extrude the leaf

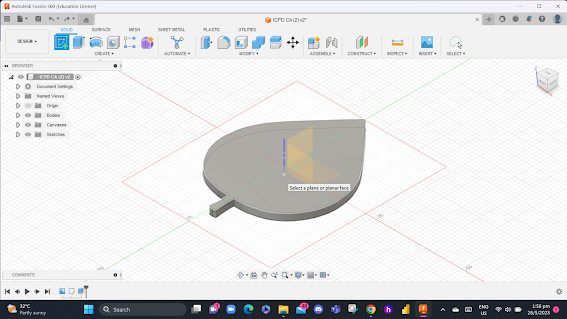

Step 7: Split them into 3 body parts

Step 8: Extrude

Step 9: Create 1 box (offset) on last body and extrude

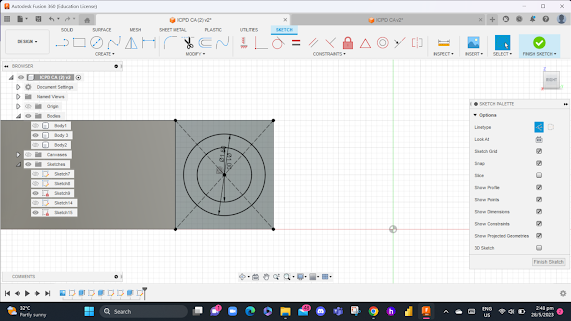

Step 10: Add circles on the extruded rectangle

Step 11: Extrude the circles (d:1.0mm and 1.5mm)

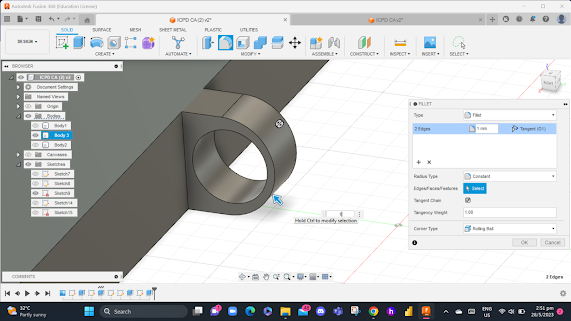

Step 12: Fillet the sides to 1.00mm

Step 13: Extrude the smaller circle drawn

Step 14: Repeat for body 2

*ps not drawn to scale because got amendments but steps are the same, the below embedded is the final product of my design in fusion hehe
